Power Output - Both channels driven |
(0.9% THD, 20 Hz - 20 kHz)
180 watts x 2 @ 8 Ω RMS
270 watts x 2 @ 4 Ω RMS |
Power Amplifier Stage Sensitivity |
1 V at Bypass/Amp In for 28 V at Speaker Out
Total Amp Stage Gain: 28 dB |
XLR Pin Identification |
1 = Ground (Shield)
2 = Positive
3 = Negative (Return) |
Current Capacity |
45 amps peak per channel |
Phono Stage Sensitivity / Input Impedance |
MM: 41 dB / 47 k Ω
MC: 54 dB / 47 k Ω or 100 Ω |
Input Impedance |
Unbalanced: 24 k Ω
Balanced: 100 k Ω per leg |
Frequency Response |
10 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.5 dB |
High & Low Pass Crossover Slope |
12 dB per octave |
Preamplifer Output Impedance |
Unbalanced: 100 Ω
Balanced: 470 Ω per leg |
Total Harmonic Distortion (THD) |
< 0.01 %, average listening levels
< 0.05 %, 160 watts x 2 @ 8 Ω |
Supported DAC Sampling Rates |
USB: up to 384 kHz / 32-bit PCM
DSD Native: DSD 64, DSD 128, DSD 256
DSD over PCM (DoP) at 384 kHz |
Interchannel Crosstalk |
> 70 dB at 20 kHz
78 dB at 1 kHz |
Coax/Optical |
up to 192 kHz / 24-bit PCM |
Signal to Noise Ratio - IHF A-weighted |
Line in: - 103 dB (input shorted)
Digital in: - 106 dB |

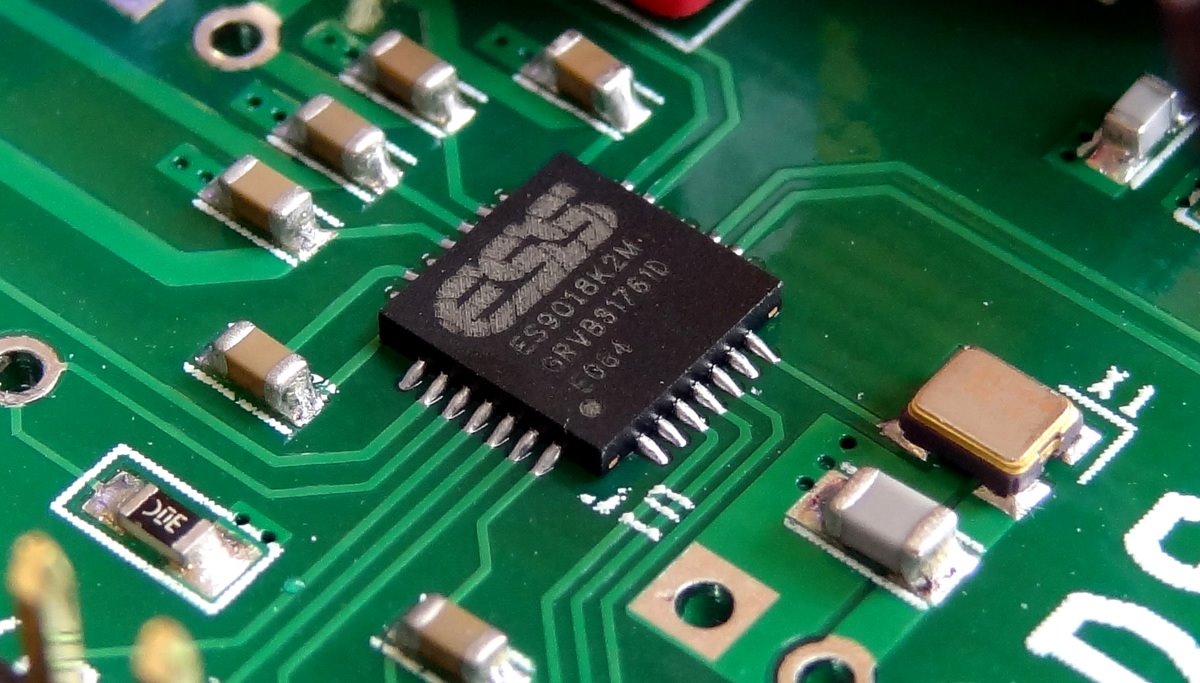

Digital to Analog Converter |
ESS Sabre32 Reference ES9018K2M
384 kHz / 32-bit |
Amplifier Damping Factor |
> 800 at 20 Hz |
USB 2.0 Controller |
Savitech SA9227, 384 kHz / 32-bit |
Preamplifier Stage Input Sensitivity |
300 mV in for 1 V at Preamp Output jacks
Total Preamp Stage Gain: 10 dB
Max Output Unbalanced: 7 V
Max Output Balanced: 9 V |
Headphone Amplifier |
Texas Instruments TPA6120A
Output Impedance 10 ohms |
Dimensions |
Width: 17-1/4" (437 mm)
Depth: 16-1/4" (413 mm)
Depth, with cables 17-1/4" (437 mm)
Height, with feet: 5-7/8" (150 mm)
Height, without feet: 5-1/4" (133 mm), 3U |
Net Weight |
33 lb. (15 kg) |
Shipping Weight |
45 lb. (20.4 kg) |
Power Requirement |
Standby: 0.5 watts
Idling power: 70 watts
Maximum: 750 watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz
AC mains voltage is set on rear panel |
